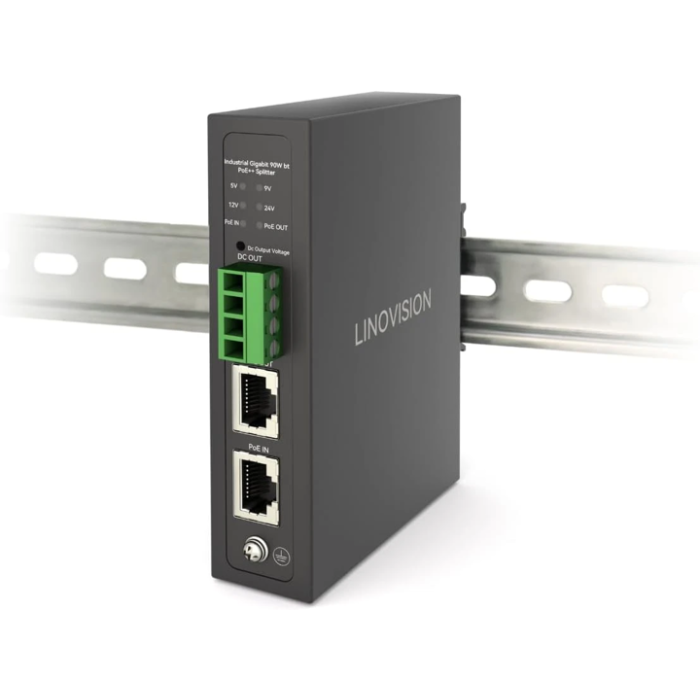

PoE Splitter ANT-MAX-S

PoE-SP02BT-POE splits 48VDC into 5V/9V/12V/24VDC power outputs via RJ45 Ethernet cable. Support for PoE applications in Gigabit Ethernet environments. Complies with IEEE 802.3af/at/bt power classification and supports conversion to DC output and PoE direct output. BT has a maximum output power of 72W.Outstanding Features

 • Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt.

• Support PoE applications in Gigabit Ethernet environments.

• Support wide input voltage range 44Vdc to 57Vdc.

• Maximum power output up to 72W.

• Support for the POE output of IEEE 802.3af/at/bt.

• Adjustable output 5VDC/14A or 9VDC/7.8A or 12VDC/5.9A,24VDC/3A.

• Thermal cut off.

• Short-circuit protection.

• High efficiency DC/DC converter.

• LED indicators for power input indication.

• Plug-and-Play.
