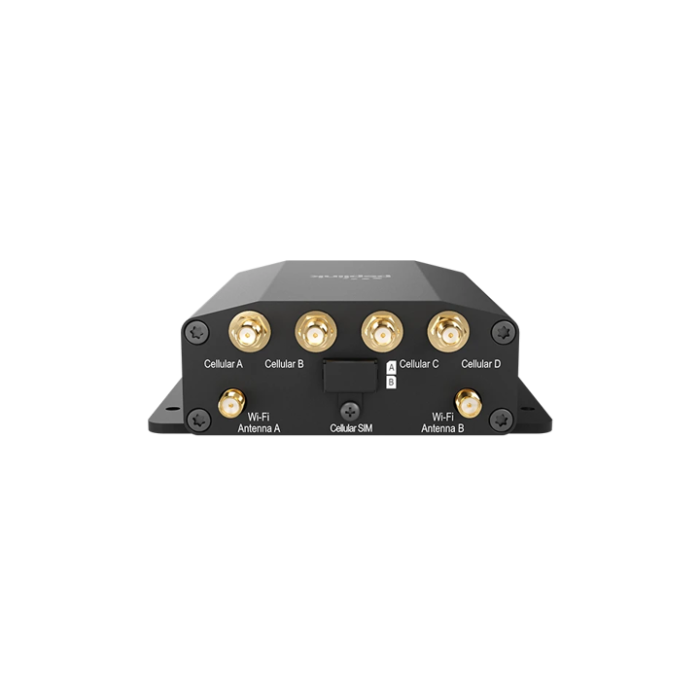

main product photo

PepLink BR1 mini 5G WiFi

Be the first to review this product
128.900,00 kr. 103.951,61 kr.
Out of stock
SKU
PEP-MAXBR1MINI5GNTPR
Add to Wish List Add to Compare
MAX BR1 Mini 5G
  • 1x 5G Modem (Global) with Redundant SIM Slots
  • 1x Optional 10/100/1000M Ethernet WAN Port*
  • Up to 3x 10/100/1000M Ethernet LAN Port
  • 2x2 MIMO Simultaneous Dual-Band, Wi-Fi 5 and optional Wi-Fi WAN*
  • 1x Optional Ethernet WAN
  • Full antenna set
  • US Carrier Certifications: AT&T, T-Mobile, Verizon (C-Band), FirstNet

*Ethernet WAN, Wi-Fi WAN, Hot Failover & WAN Smoothing are available with a feature pack add-on license (MAX-BR1-MINI-LC-FP) or PrimeCare subscription.

Specifications
WAN Interface
  • 1x 10/100/1000M Ethernet 1
  • 1x Embedded Cellular Modem with
  • Redundant SIM Slots

LAN Interface
  • 2x 10/100/1000M Ethernet

Wi-Fi Interface
  • Simultaneous Dual-Band (2.4GHz / 5GHz)
  • Wi-Fi 5, 2X2 MIMO
  • Wi-Fi WAN 1 and/or AP

SpeedFusion features
  • Hot Failover 1
  • Smoothing 1
  • Bandwidth Bonding 1

Number of SpeedFusion VPN Peers
  • 2 / 5

Router Throughput
  • 300 Mbps

SpeedFusion VPN Throughput
  • No Encryption 80 Mbps
  • 256-bit AES 60 Mbps

Recommended Users
  • 1-60

Cellular Data Rate 2 (Downlink/Uplink)
  • 5G: 3.4 Gbps / 900 Mbps
  • CAT-20: 1.6 Gbps / 200 Mbps

Antenna Connectors
  • 4x SMA Cellular Antenna Connectors
  • 2x RP-SMA Wi-Fi Antenna Connectors

Power Input
  • Power Port: 10V – 30V DC
  • AC Adapter: AC Input 100V–240V / DC Output 12V
  • Power over Ethernet 802.3at

Power Consumption
  • 13W (nominal) , 18W (max.)

Dimension
  • 125.7 x 107 x 35 mm

Weight
  • 425 grams
Operating Temperature
  • -40° – 65°C

Humidity
  • 15% – 95% (non-condensing)

Certification
  • FCC, CE, RoHS
  • EN 61000 Electromagnetic Compatibility
  • EN 45545-2 Railway applications - Fire protection

Package Content
  • 1x BR1 Mini 5G (HW2)
  • 4x LTE/5G Antennas (ACW-235)
  • 2x Dual Band Wi-Fi Antennas (ACW-342)
  • 1x 12V 2A 4pin Power Supply (ACW-632)

SIM Options
  • Nano-SIM (4FF)
  • Peplink eSIM
  • BYO eSIM (2 profiles)
  • Remote SIM from SIM Injector
  • FusionSIM

Warranty
  • 1-Year Limited Warranty
