SwOS powered 24 port Gigabit Ethernet switch with

Be the first to review this product

63.721,35 kr. 47.201,00 kr.

In stock

SKU

MTIK-CSS326-24G-2S+R

CSS326-24G-2S+RM

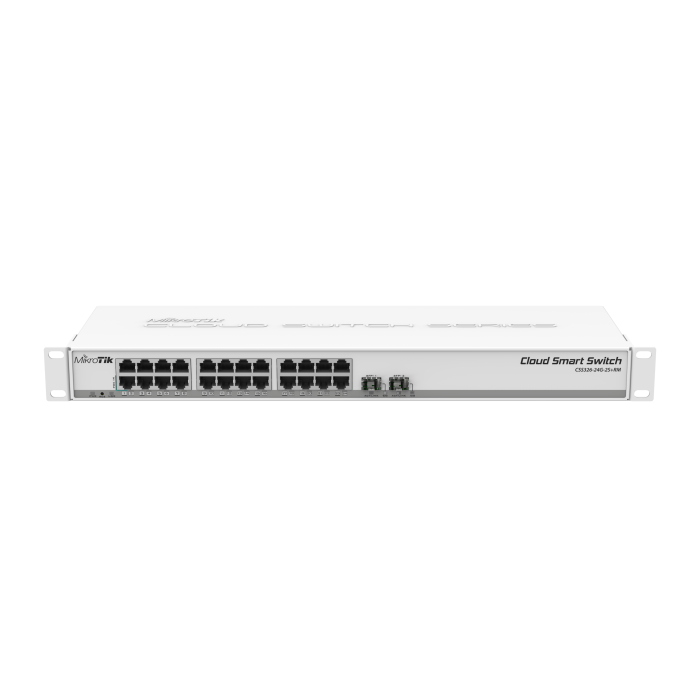

SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Specifications

Details
Product code	CSS326-24G-2S+RM
Switch chip model	98DX3216
Dimensions	443 x 144 x 44 mm
Operating System	SwOS
Storage size	2 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-30 V
Max power consumption	19 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	10-30 V
